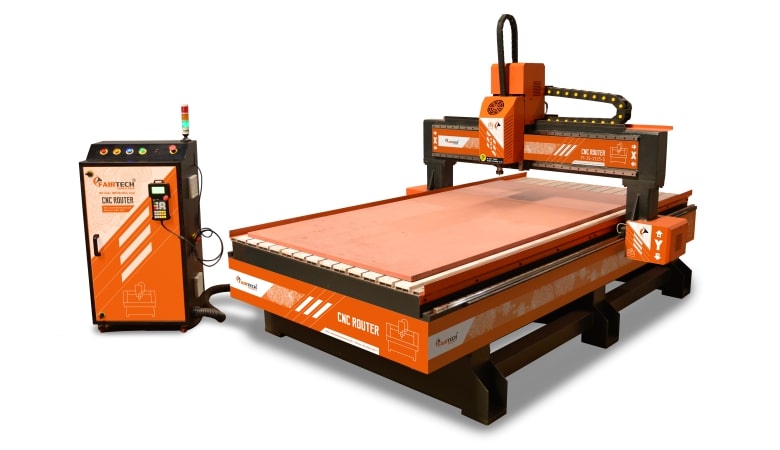

3D CNC Router

Home | Products | 3D CNC Router

Extra Support

  • Automatic Dust Collector:

    Available on additional Charges

  • Voltage Stabilizer:

    Available on additional Charges

Technical Specification

  • Application Material: Wood, Acrylic, ACP, PVC, Hardwood, Corian
  • Axis Travel Size: 2500x1300x200 (mm)
  • Axis Motion System: Rack & Pinion for X,Y-Axis & Ball Screw in Z-axis
  • Axis Motor and Driver: Servo Motor (750 W)
  • Working Speed: 20,000 mm/min
  • Ideal Speed: 20,000 mm/min
  • Axis Sliding System: 25mm LM Guide & Blocks
  • Spindle Motor: 6 KW (18000 RPM, Air Cool, ER32) Make: HSD/HiTeco
  • Lubrication System: Manual Lubrication oil pump
  • Machine Weight: 1200-1500kg (Approx.)
  • Structure: Heavy Designed Mild Steel Structure
  • Required Power Supply: 3-Phase, 440V (50Hz)
  • Controller: NK 105 G2/G3
  • Machine Size: 10 x 7 (Feet) 1 Unit
